Fully Insulated Closed Ring Network Switchgear
  • Fully Insulated Closed Ring Network SwitchgearFully Insulated Closed Ring Network Switchgear

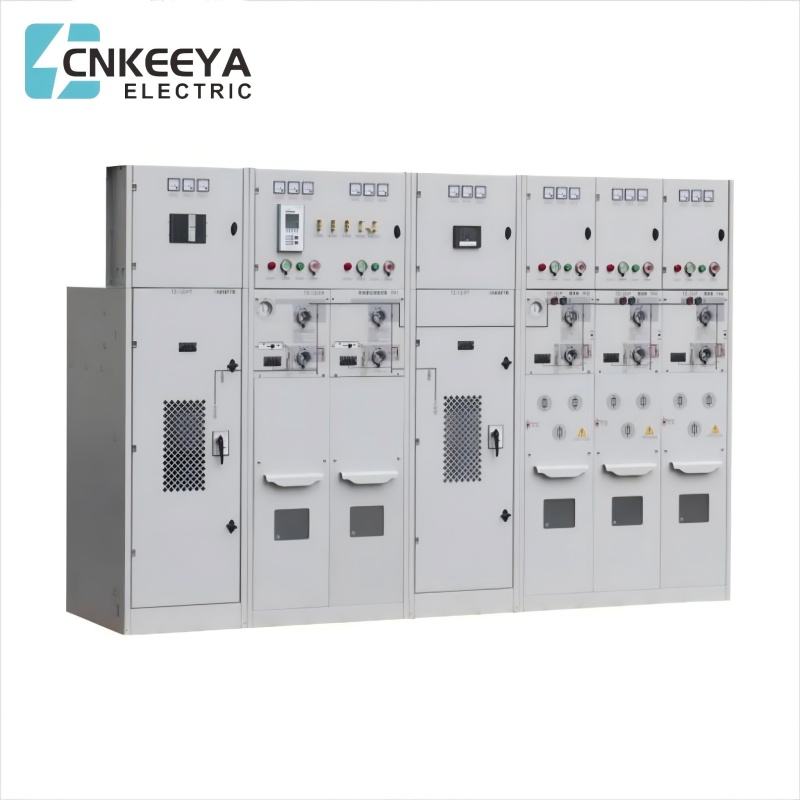

Fully Insulated Closed Ring Network Switchgear

Keeya, a distinguished supplier, proudly offers the Fully Insulated Closed Ring Network Switchgear—an embodiment of advanced technology at a cost-effective price point. Our commitment to quality is complemented by a dedication to providing low-cost solutions in the realm of fully insulated closed ring network switchgear. Keeya stands as your trusted partner, delivering high-performance products that meet both technical requirements and budget considerations. Choose Keeya for cutting-edge solutions that prioritize efficiency without compromising affordability.

Model: KYRM6-12

Send Inquiry

Product Description

Keeya, a distinguished supplier, introduces the Fully Insulated Closed Ring Network Switchgear, seamlessly merging advanced technology with cost-effective solutions. Our commitment to delivering high-quality products is complemented by our dedication to ensuring competitive prices. Keeya stands as your reliable source for efficient and low-cost solutions in the realm of fully insulated closed ring network switchgear. Partner with us to access top-notch products that align with your budgetary considerations, ensuring reliability and affordability.


KYRM6-12 gas plled ring main unit is a completely sealed system,and its live parts and switches are enclosed in a stainless steel body. The entire switchgear is not affected by external environmental conditions, thereby ensuring operational reliability and personal safety, so as to achieve maintenance-free. By choosing an expandable bus,any combination can be made to achieve full modularity. The safety insulation and shielding of the extended bus bar ensure reliability and safety. SRM6-12 gas Plled ring main unit can also provide TV-based automation solutions,forming the concept of intelligent switches,and minimizing the workload of on-site installation and commissioning.


Product main feature

KYRM6-12 series gas filled ring main unit features SF6 gas used as arc extinguishing and insulating medium. The Unit is a fully sealed and fully insulated structure; the bus bar, switchand point parts are completely enclosed in a stainless steel shell. The cavity is filled with 1.4bar SF6 gas, and the protection level reaches IP67; the entire switch device is completely unaffected by external environmental conditions, and the normal operation of the switch can be guaranteed even under extreme conditions such as short-term Booding, and the product is maintenance-free for life.

● The Unit has a reliable and safe pressure relief channel, which can guarantee the personal safety of the operator even in extreme situations.

● The Unit is available of two types: fixed unit combination and expandable unit combination.

● The Unit usually enters and exits from the front, and can also achieve side exit or side expansion according to different installation positions.

● The size of the Unit is easy to install, and it can be suitable for places with small space and poor environmental conditions.

● The Unit can be equipped with electric motoring, remote control and monitoring devices to meet the different needs of users.


KYRM6-12

Fully insulated closed ring network switchgear

Technical parameter

Model

Module C

Module C

Module V

Module CB

Combination switch


Vacuum switch

Isolating/earth switch

Vacuum circuit breaker


Rated voltage

kV





12

12

Rated frequency

Hz





50

50

 Power frequency withstand voltage (phase-phase/solating distance)

kV

42/48

42/48

42/48

42/48

42/48

42/48

Lightning impulse withstand voltage

kV

75/85

75/85

75/85

75/85

75/85

75/85

Rated current

A

630

Note:1

630


1250/630


Rated closed-ring breaking current

A

630






 Rated cable charging breaking current

A

135/135






Rated short circuit making current(peak)

A

50

80





Rated peak withstand current

kA

50






Rated short time withstand current

kA/3s







Rated short circuit breaking current

kA


31.5

20


25


Rated transfer current

A


1750





Max.current of equipped fuse

A


125





Circuit resistance

n

≤300

≤600





Mechanical life

time

5000

3000

5000

2000

5000

5000

Note:1 lt depends on the fuse's current rating.


KYRM6-12

Fully insulated closed ring network switchgear

Switch cabinet structure and size

Unit

A

B

C

D

1-way

365

290

331

365

2-way

690

615

656

690

3-way

1015

940

981

1015

4-way

1340

1265

1306

1340

5-way

1665

1590

1631

1665

6-way

1990

1915

1956

1990
