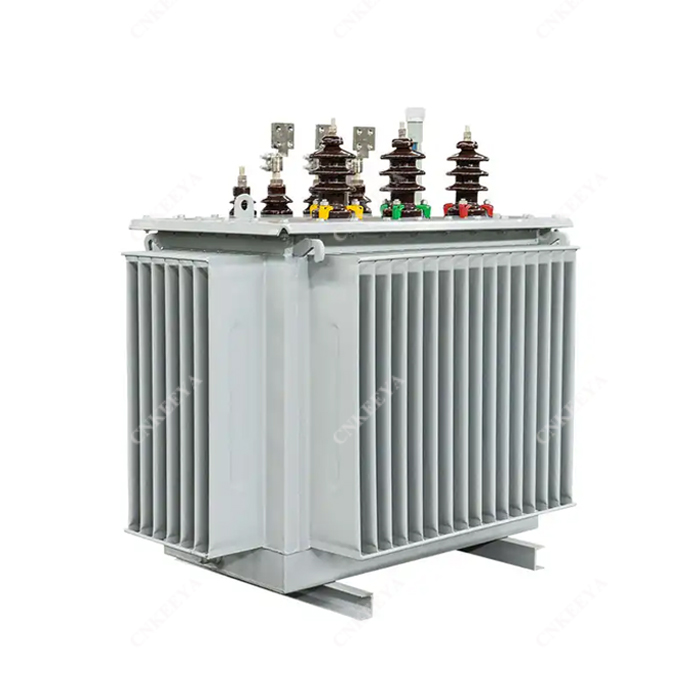

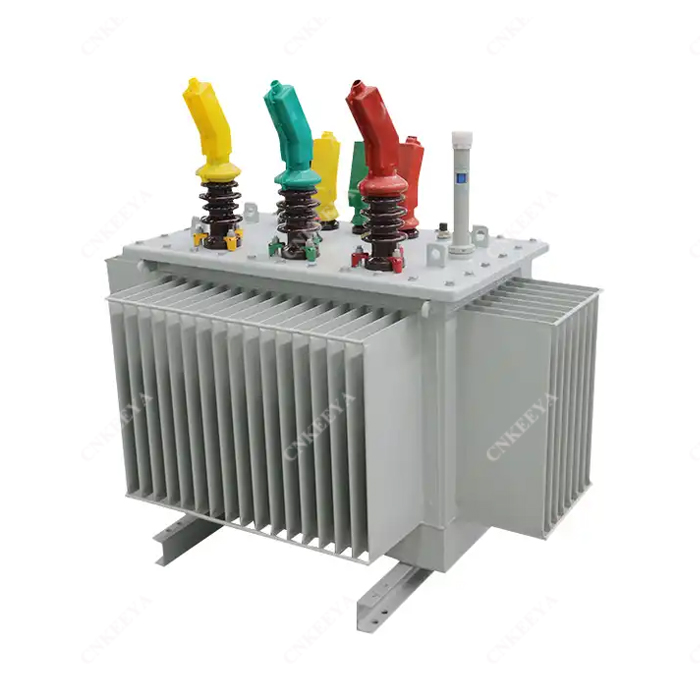

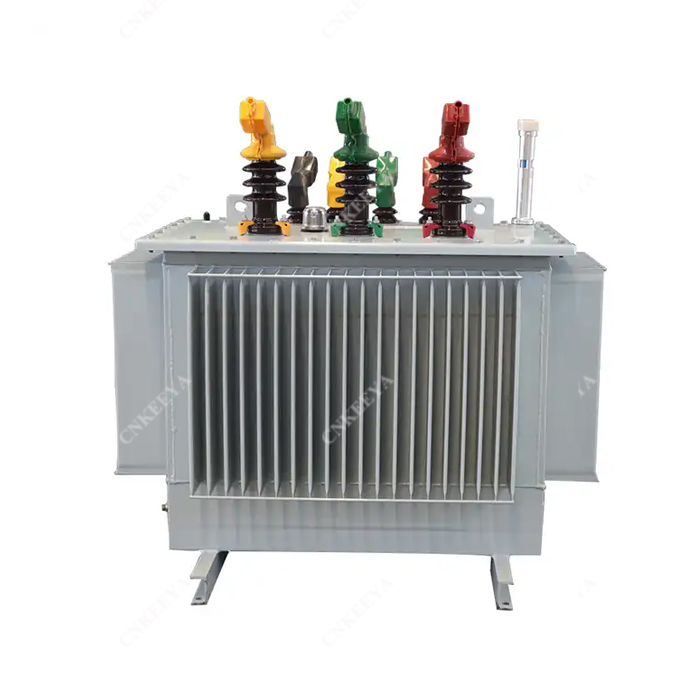

S13-type Oil-immersed Distribution Transformer

CNKEEYA, S11-M fully sealed oil-immersed power transformer is suitable for power systems withAC 50Hz, rated working voltage of 10kV and below, as distribution transformers in petroleum,metallurgy, chemical, textile, light industry and other enterprises and places with large dust.The product conforms to the standard: GB1094.1-5

S13-type Oil-immersed Distribution Transformer is widely used in residential areas, commercial centers, industrial parks and rural electrification projects. Compared with S9 or S11 models, the S13 offers several improvements.

The main advantages are as follows:

1. Higher Energy Efficiency

Lower No-load Loss: The S13 series adopts high-quality silicon steel sheets and optimized magnetic circuit design, reducing no-load loss by 20-30% compared with the S11 model.

Enhanced oil circulation and cooling systems help maintain stable operation under load.

2. Improved Temperature Rise PerformanceLower Load Loss.

Improved winding structure and materials reduce resistance and load loss, enhancing overall efficiency.

3. Reduced Noise Level

The use of high-permeability silicon steel and precision manufacturing reduces magnetostriction, resulting in quieter operation.

4. Robust Mechanical Design

Short-circuit resistance is improved due to optimized winding structure and clamping. The iron core and coil assembly are more stable, reducing vibration and mechanical stress.

5. Longer Service Life

Better materials and structural improvements lead to an extended service life, which usually reaches 20-30 years under proper conditions.

For special requirements, we provide personalized customization services for the S13-type transformer, such as voltage adjustment and accessory matching. Our team responds quickly to your needs and ensures customized products meet strict quality standards.
