Why Is XRNP-11 the Preferred High-Voltage Current-Limiting Fuse for Transformer Protection

In modern power distribution systems, selecting the right protective component is critical for ensuring operational safety, minimizing downtime, and protecting valuable equipment. As a trusted supplier in the electrical protection industry, Hanya provides reliable solutions such as the XRNP-11, a high-voltage current-limiting fuse specifically engineered for transformer protection. With excellent breaking capacity, fast fault-clearing performance, and dependable operation, XRNP-11 has become a preferred choice in substations, industrial facilities, renewable energy projects, and utility networks worldwide.

Contents

• What Is XRNP-11?
• How Does XRNP-11 Work?
• Technical Specifications
• Key Advantages of XRNP-11
• Typical Applications
• XRNP-11 vs Conventional Fuses
• How to Select the Right XRNP-11 Fuse
• Installation and Maintenance Tips
• Future Trends in Transformer Protection
• Frequently Asked Questions
• Conclusion

What Is XRNP-11?

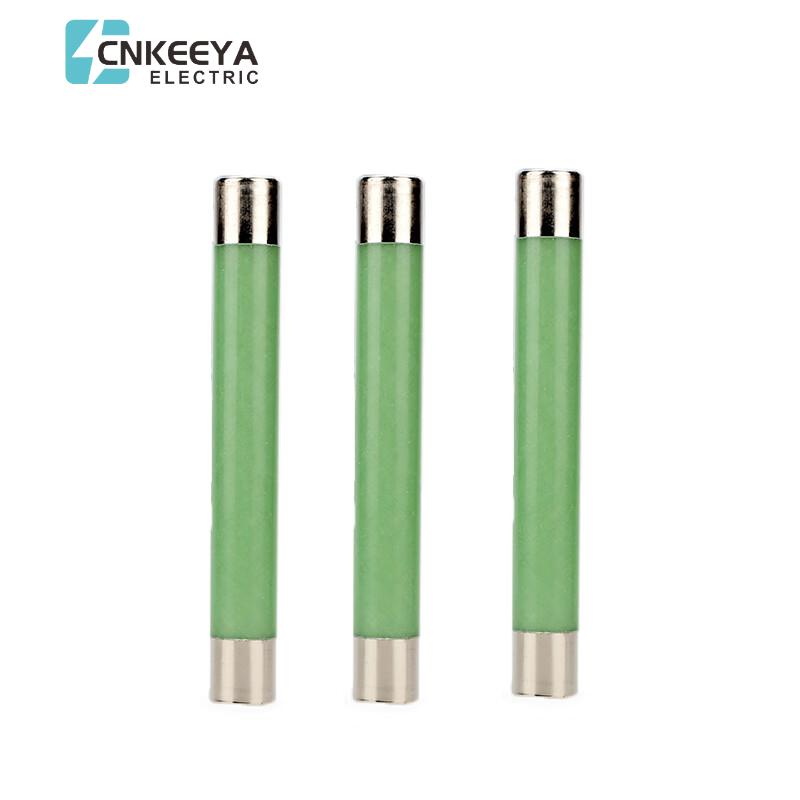

XRNP-11 is a high-voltage current-limiting fuse primarily used for transformer protection in medium- and high-voltage power systems. It is designed to interrupt fault currents rapidly before they can cause significant damage to transformers, switchgear, or other electrical equipment.

The fuse contains specially engineered fuse elements enclosed within a high-strength ceramic body filled with quartz sand. During fault conditions, the fuse element melts and the quartz sand absorbs the arc energy, effectively extinguishing the arc and limiting fault current.

Because of its high breaking capacity and fast response characteristics, XRNP-11 is widely installed in:

• Distribution transformers
• Ring main units (RMUs)
• Switchgear systems
• Substations
• Industrial power networks
• Renewable energy facilities

How Does XRNP-11 Work?

The operating principle of XRNP-11 is based on current limitation and rapid fault interruption.

1. Under normal conditions, current flows through the fuse element without interruption.
2. When a short circuit or severe overload occurs, current rises rapidly.
3. The fuse element heats up and melts.
4. An electric arc forms inside the fuse body.
5. Quartz sand absorbs arc energy and cools the plasma.
6. The arc is extinguished and the circuit is disconnected.
7. Equipment remains protected from excessive thermal and mechanical stress.

This process occurs within milliseconds, significantly reducing damage risks compared with slower protective devices.

Technical Specifications

Key Advantages of XRNP-11

Excellent Current-Limiting Performance

XRNP-11 significantly reduces peak fault current, helping prevent transformer winding damage and reducing stress on connected equipment.

High Breaking Capacity

Its ability to interrupt extremely high short-circuit currents makes it suitable for demanding electrical environments.

Fast Fault Clearing

The fuse reacts within milliseconds, minimizing system disruption and equipment exposure to fault energy.

Compact Design

Compared with larger protection systems, XRNP-11 offers a space-saving solution for modern switchgear and compact substations.

Reliable Operation

Its simple mechanical structure ensures dependable performance without requiring complex maintenance procedures.

Cost-Effective Protection

XRNP-11 provides excellent protection at a lower overall cost compared with many advanced electronic protection systems.

Typical Applications

XRNP-11 is suitable for a wide range of electrical applications.

These applications demand reliable protection against fault currents while maintaining system continuity and operational efficiency.

XRNP-11 vs Conventional Fuses

How to Select the Right XRNP-11 Fuse

Proper fuse selection is essential for achieving optimal protection performance.

Consider the following factors:

• Transformer rated power
• System voltage level
• Expected fault current
• Load characteristics
• Ambient operating conditions
• Coordination with other protection devices
• Compliance requirements

Selecting an incorrectly rated fuse may result in nuisance operation or inadequate protection.

Installation and Maintenance Tips

To maximize performance and safety, follow recommended installation practices:

• Verify voltage and current ratings before installation.
• Inspect the fuse for transportation damage.
• Ensure secure mounting within the fuse holder.
• Maintain clean electrical contact surfaces.
• Follow manufacturer torque specifications.
• Conduct periodic visual inspections.
• Replace fuses immediately after operation.

Routine maintenance helps maintain system reliability and extends equipment service life.

Future Trends in Transformer Protection

As power systems become increasingly digital and interconnected, transformer protection technologies continue to evolve. However, high-voltage current-limiting fuses like XRNP-11 remain essential because of their proven reliability, simplicity, and fast response.

Future developments may include:

• Enhanced fault indication systems
• Smart monitoring integration
• Improved arc-extinguishing materials
• Higher efficiency designs
• Greater compatibility with renewable energy systems

Despite advancements in digital protection relays, current-limiting fuses will continue to play a critical role in layered protection strategies.

Frequently Asked Questions

What is XRNP-11 mainly used for?

XRNP-11 is primarily used for protecting transformers and high-voltage electrical equipment against short circuits and excessive fault currents.

Why is current limitation important?

Current limitation reduces peak fault current, minimizing thermal and mechanical stress on transformers and connected equipment.

Can XRNP-11 be used in renewable energy projects?

Yes. XRNP-11 is commonly used in solar power plants, wind farms, and energy storage systems requiring reliable transformer protection.

How often should XRNP-11 be inspected?

Periodic inspections should be conducted according to system maintenance schedules, especially in critical installations.

Is XRNP-11 compliant with international standards?

Many XRNP-11 models are manufactured in accordance with IEC requirements and other applicable industry standards.

What are the main benefits compared with circuit breakers?

XRNP-11 offers faster fault-clearing speed, excellent current limitation, lower maintenance requirements, and cost-effective transformer protection.

Conclusion

XRNP-11 has established itself as one of the most reliable solutions for transformer protection in modern electrical systems. Its high breaking capacity, rapid fault-clearing capability, excellent current-limiting performance, and long-term operational reliability make it an ideal choice for utilities, industrial facilities, renewable energy projects, and distribution networks. As power infrastructures continue to expand and modernize, selecting a proven protection device such as XRNP-11 can significantly improve system safety, reliability, and equipment lifespan.

Looking for a dependable XRNP-11 fuse solution for your next project? Contact us today to discuss your requirements. Our experienced team can help you select the most suitable transformer protection solution, provide technical support, and deliver high-quality products that meet international standards and project specifications.
