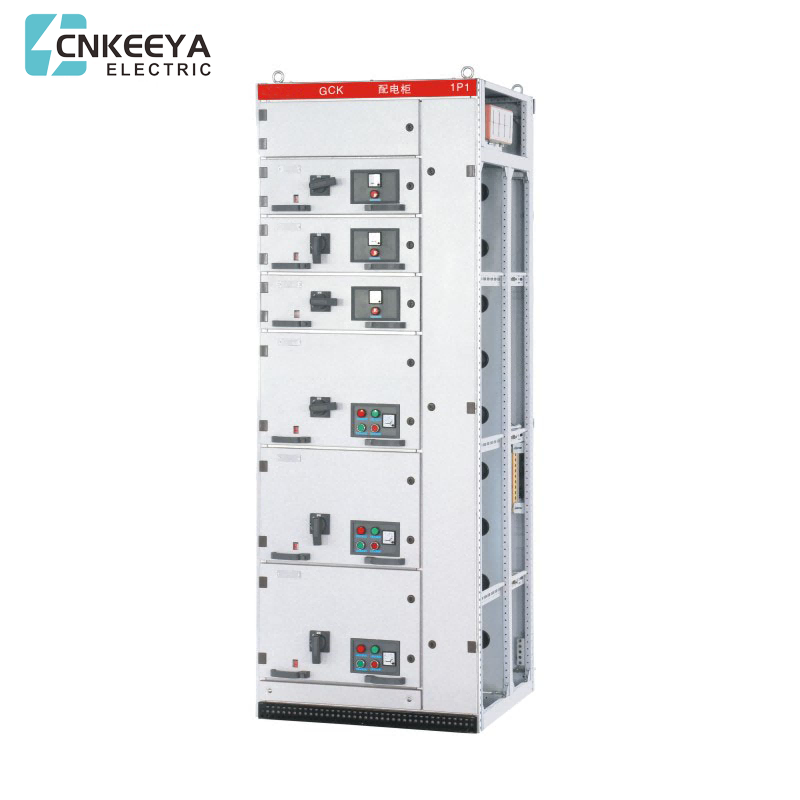

GCK Low Voltage Withdrawable Switchgear

Keeya, a reputable manufacturer, proudly introduces the GCK Low Voltage Withdrawable Switchgear—a high quality solution designed for efficient and reliable power distribution. With a commitment to meeting industry standards, Keeya stands as a trusted partner for diverse applications in the electrical sector.

Model: GCK

Send Inquiry

Product Description

Keeya, a distinguished manufacturer in China, takes pride in presenting the GCK Low Voltage Withdrawable Switchgear—a customizable and cost-effective solution for versatile power distribution needs. As manufacturers, Keeya is committed to providing tailored solutions, allowing clients to customize the GCK series to meet specific requirements. Our dedication to affordability ensures that the GCK Low Voltage Withdrawable Switchgear not only offers flexibility but also comes at a competitive price. Keeya stands out as a reliable choice for those seeking a balance between customization, cost-effectiveness, and quality in their switchgear solutions, making it a preferred partner in diverse electrical applications.


GCK low voltage withdrawable switchgear consists of two parts: power distribution center (PC) switchgear and motor control center (MCC). It is suitable for power users applicable to such as power plants,substations, industrial and mining enterprises for AC 50Hz, maximum working voltage up to 660V, maximum working current up to 3150A in the power distriburion system, it is used for power distribution,motor control,lighting and other power distribution equipment for their power conversion and distribution control.


GCK Low Voltage Withdrawable Switchgear

Applicable environmental conditions

● The altitude does not exceed 2000m.

● The ambient air temperature is not higher than +40℃,and the average temperature within 24h is not higher than +35℃,and the ambient air temperature is not lower than -50℃.

● Atmospheric conditions:the air is clean,the relative humidity does not exceed 50%at +40℃,and higher relative humidity is allow- ed at lower temperatures,e.g:90%at +20℃.

● There place should be without Pre,explosion hazard,serious pollution,chemical corrosion and severe vibration. Inclination should not be more than 5°to the vertical.

● This product is suitable for transportation and storage at the following temperatures:-25℃~+55℃,and within a short period of time (not more than 24h)not exceeding +70℃ . lf the above service conditions cannot be met,the user should consult our company when ordering.


The main technical parameters of the switchgear

(Hz)Rated working frequency

50

(V)Rated working voltage

380,660

(V)Rated insulation voltage

660

(A)

Rated working current

Horizontal bus

630-3150

Vertical bus

600


Rated short-time withstand current

Horizontal bus

80 kA(effective value)/1 second

Vertical bus

50 kA(effective value)/1 second


Rated peak withstand current

Horizontal bus

176 kA/0.1s

Vertical bus

110 kA/0.1s

(A)Main circuit connector

200,400

(A)Auxiliary circuit connector

10

Power frequency withstand voltage for 1 minute

2500

Protection level

IP40

Mode of operation

local,remote,automatic


Installation dimensions and mounting holes

(A) Width for switchgear

(B) Depth for the switchgear

(a) Installation hole distance

(b) Installation hole distance

800

500

685

385

600

800

485

685

600

1000

485

885

800

800

685

685

800

1000

685

885

1000

800

885

685

1000

1000

885

885


Outline dimensions and installation dimensions


Schematic diagram of product installation foundation

Note:the company can provide various forms of bustrays as users require.


Product indoor layout and bus tray requirements


Ordering instruction

● When this product is installed,the horizontal line between the switchgears should be connected firmly and reliably.

● The door of this product has an interlocking function with the main switch,that s,the door can be opened only when the power is cut off The other side of the product is a screw sealing plate,which has no interlocking function with the main switch,therefore,the user must disconnect the power supply when disassembling the side panel of this product for maintenance.

● Non-professionals should not open the switchgear for maintenance and repair.
