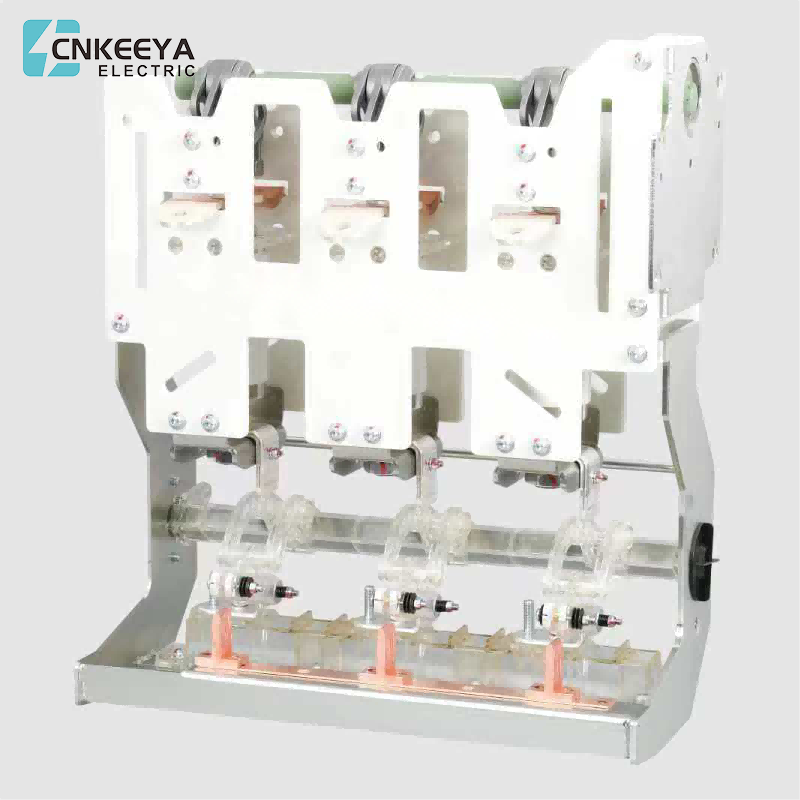

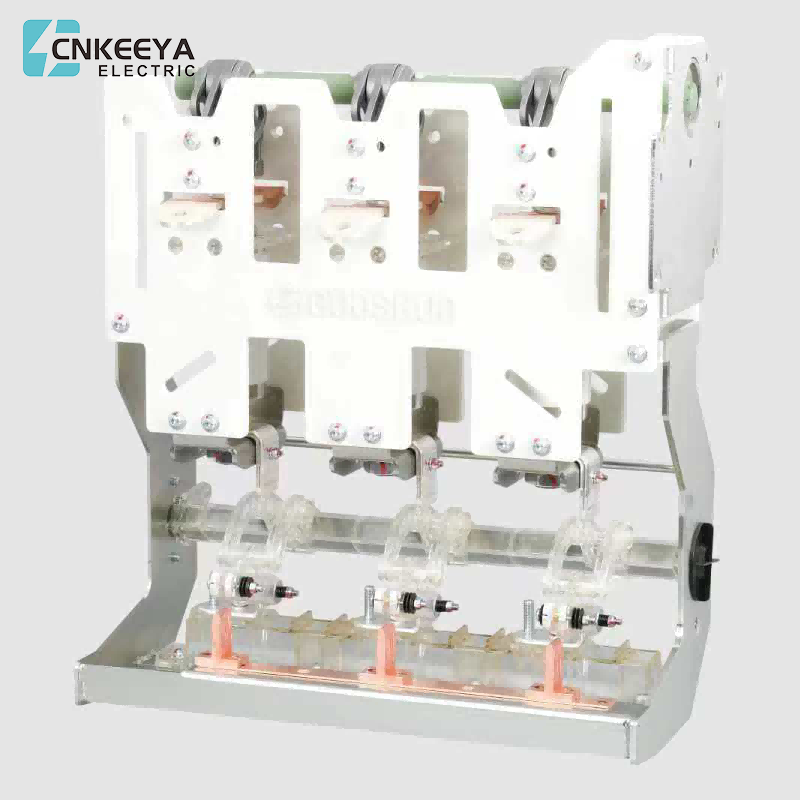

VCB, 11kV, 630A, 21kA for 3 Sec
Model:VCB
VCB, 11kV, 630A, 21kA for 3 Sec. TYPE-VCB i)MECHCD1 MECHANISM
ii)SPRING CHARHING MOTOR FOR VCB 24VDC
iii)CLOSING COIL FM 5% 24V DC
iv)TRIPPING COIL FM 15% 24V DC
V)AUXILIARY SWITCH WITH 6NO+6NC
Vi)630A DISCONNECTOR WITH EARTH SWITCH
Size: width * depth * height (mm)
371*758*1900
VCB, 11kV, 630A, 21kA for 3 Sec. TYPE-VCB i)MECHCD1 MECHANISM
ii)SPRING CHARHING MOTOR FOR VCB 24VDC
iii)CLOSING COIL FM 5% 24V DC
iv)TRIPPING COIL FM 15% 24V DC
V)AUXILIARY SWITCH WITH 6NO+6NC
Vi)630A DISCONNECTOR WITH EARTH SWITCH
Size: width * depth * height (mm)
371*758*1900
