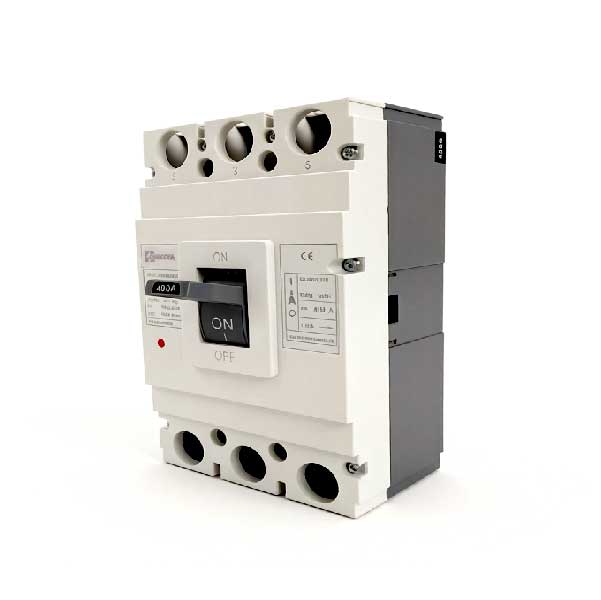

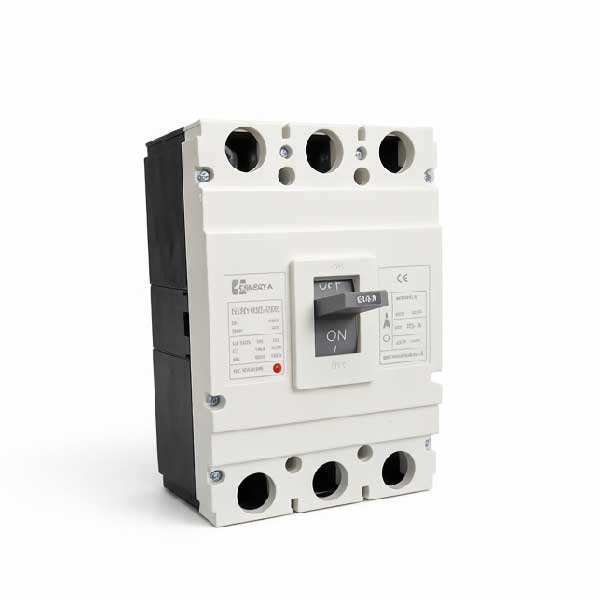

HYM1 Series Molded Case Circuit Breaker
Model:HYB1-32
HYM1 series molded case circuit breaker (hereinafter referred to as circuit breaker) is suitable for distributing network of AC 50Hz (or 60Hz), rated insulation voltage 690V, rated working voltage 690V or below and rated current 1250A or below. It can be used to distribute electric energy and protect the circuit and electric equipment against overload, short circuit and under voltage, furthermore, the circuit breakers of frame size 400A below also can protect the motor against overload, under voltage and short circuit. Under normal condition, the circuit breaker also can be used to switch the circuit and start the motor infrequently. The products are in conformity with such standards as IEC 60947-2 and GB 14048.2.
HYM1 series molded case circuit breaker (hereinafter referred to as circuit breaker) is suitable for distributing network of AC 50Hz (or 60Hz), rated insulation voltage 690V, rated working voltage 690V or below and rated current 1250A or below. It can be used to distribute electric energy and protect the circuit and electric equipment against overload, short circuit and under voltage, furthermore, the circuit breakers of frame size 400A below also can protect the motor against overload, under voltage and short circuit. Under normal condition, the circuit breaker also can be used to switch the circuit and start the motor infrequently. The products are in conformity with such standards as IEC 60947-2 and GB 14048.2.

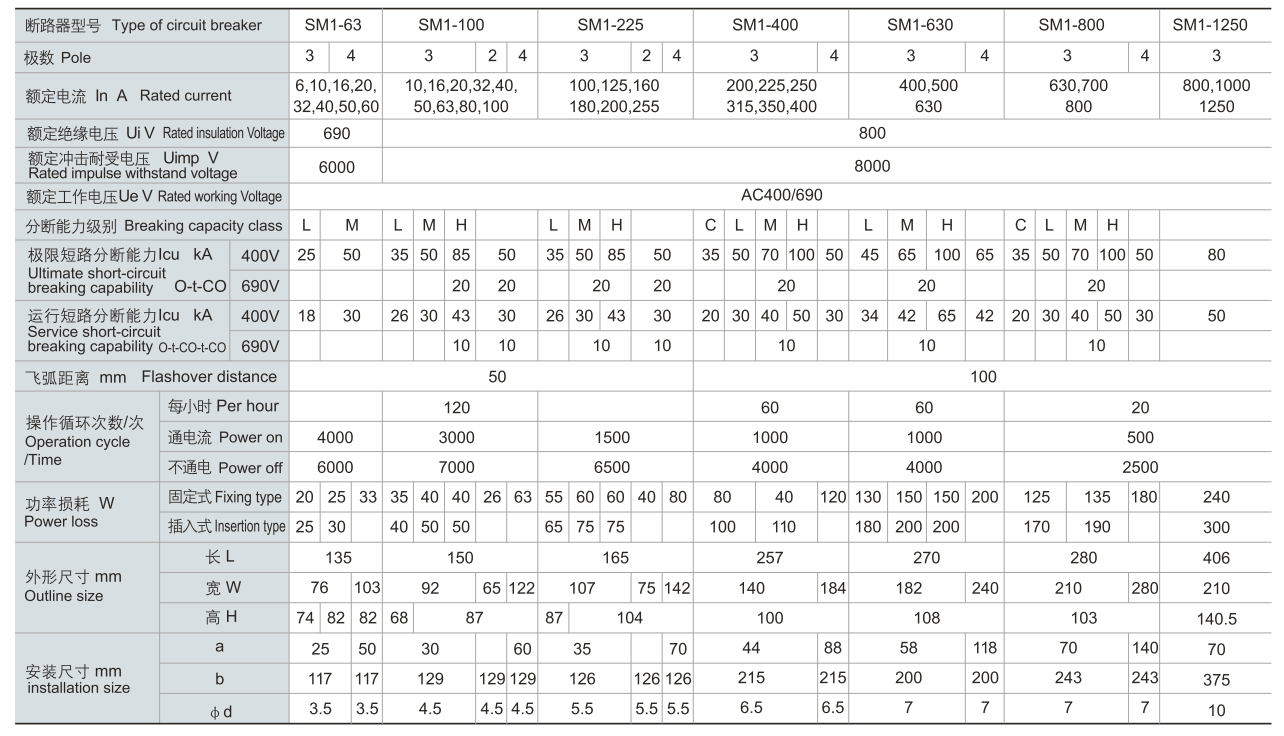

Main Technical Data

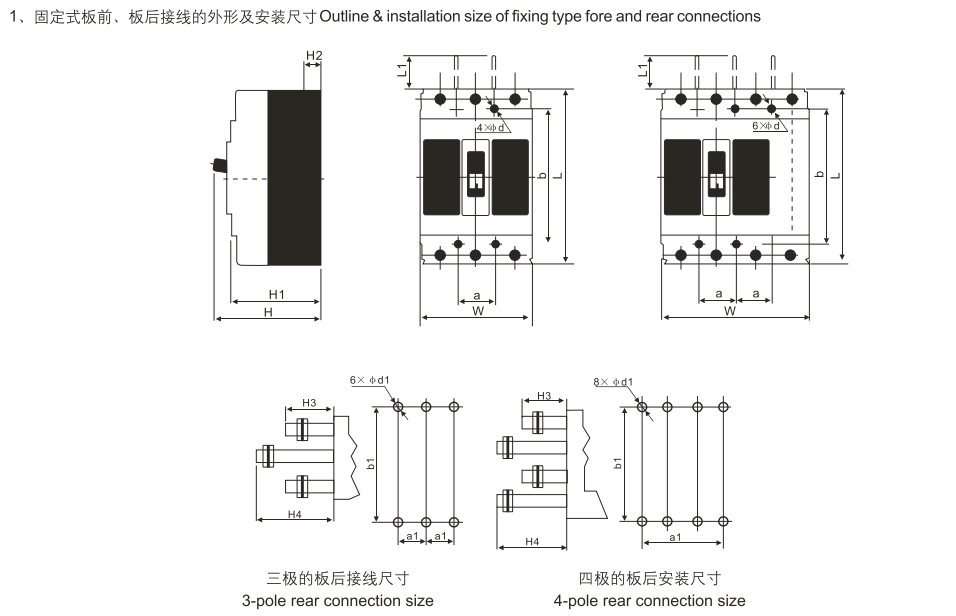

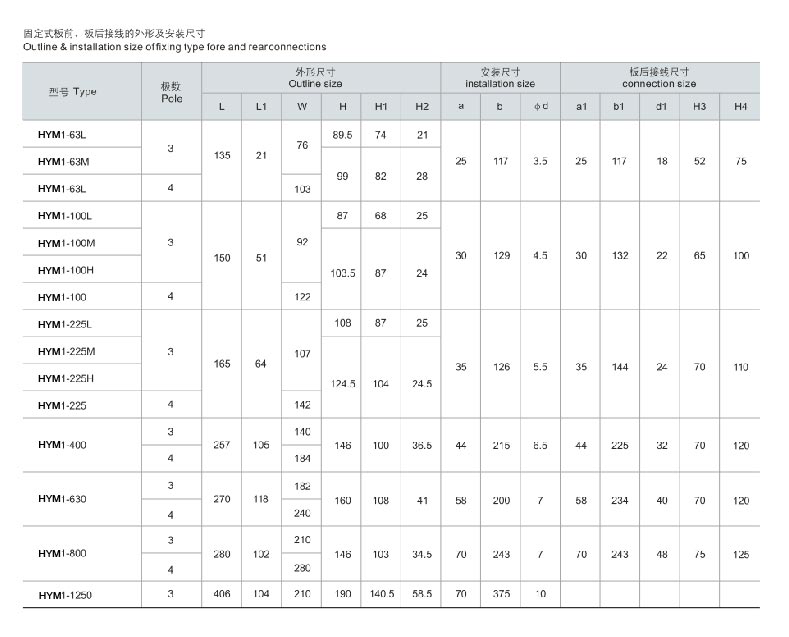

Outline & Installation Size
