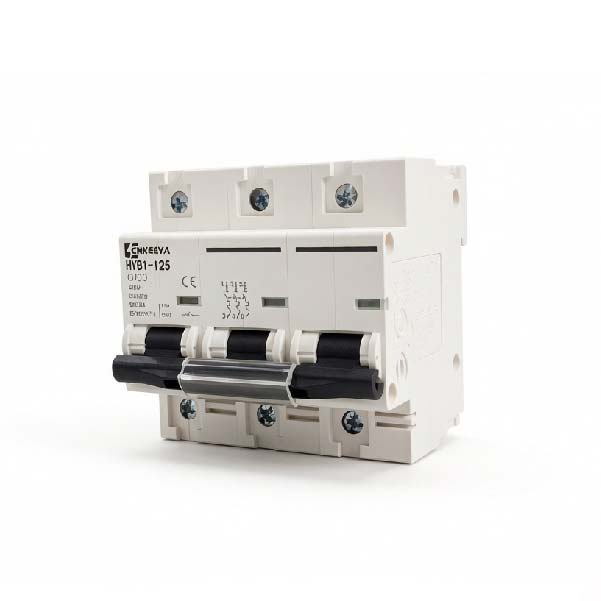

HYB1-125 C100 MCB Miniature Circuit Breaker
Model:HYB1-125 C100
HYB1-125 series miniature circuit breaker (hereina fterreferred to as circuit breaker) is a current-limitinghigh-breaking miniature circuit breaker with bothoverload protection and short circuit pro tection,suitable for the circuit of AC 50Hz or 60Hz,rated working voltage 230V/400V, rated current63A or below, to protect the circuit againstoverload and short circuit. The products are inconformity with such standards as GB10963and IEC60898-1.
HYB1-125 series miniature circuit breaker (hereina fterreferred to as circuit breaker) is a current-limitinghigh-breaking miniature circuit breaker with bothoverload protection and short circuit pro tection,suitable for the circuit of AC 50Hz or 60Hz,rated working voltage 230V/400V, rated current63A or below, to protect the circuit againstoverload and short circuit. The products are inconformity with such standards as GB10963and IEC60898-1.
Frame rated current: 125A
Rated operational current (In): 100A
Trip characteristic: Curve C (for general distribution circuits)
Poles: 3 Pole (3P)
Compliance standard: IEC 60898-1
Certification: CE Mark
Function: Provides overload and short-circuit protection for AC low-voltage three-phase distribution systems in factories, commercial buildings and distribution cabinets.
