Product Description

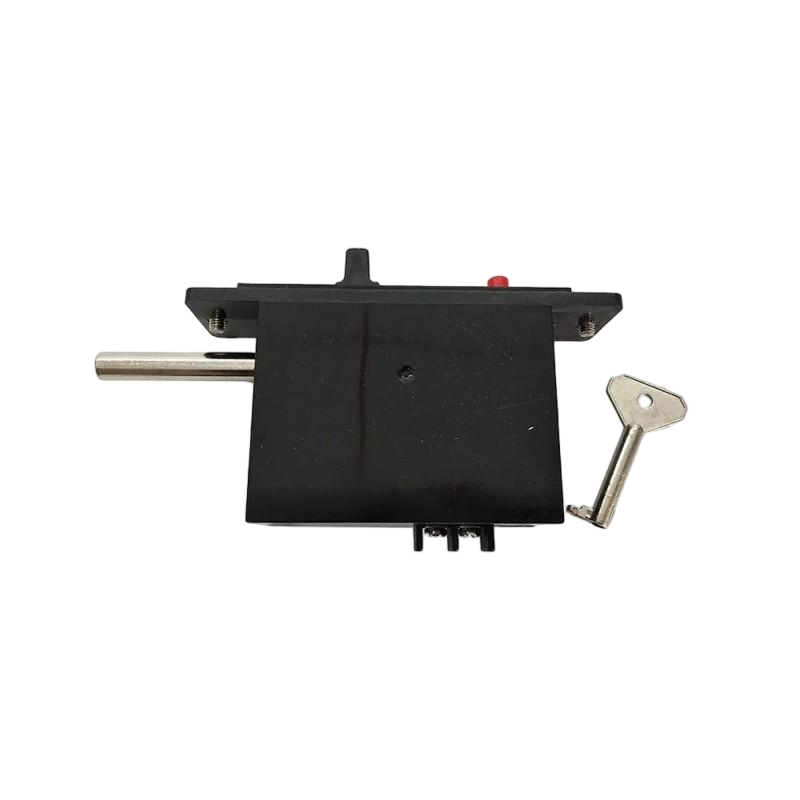

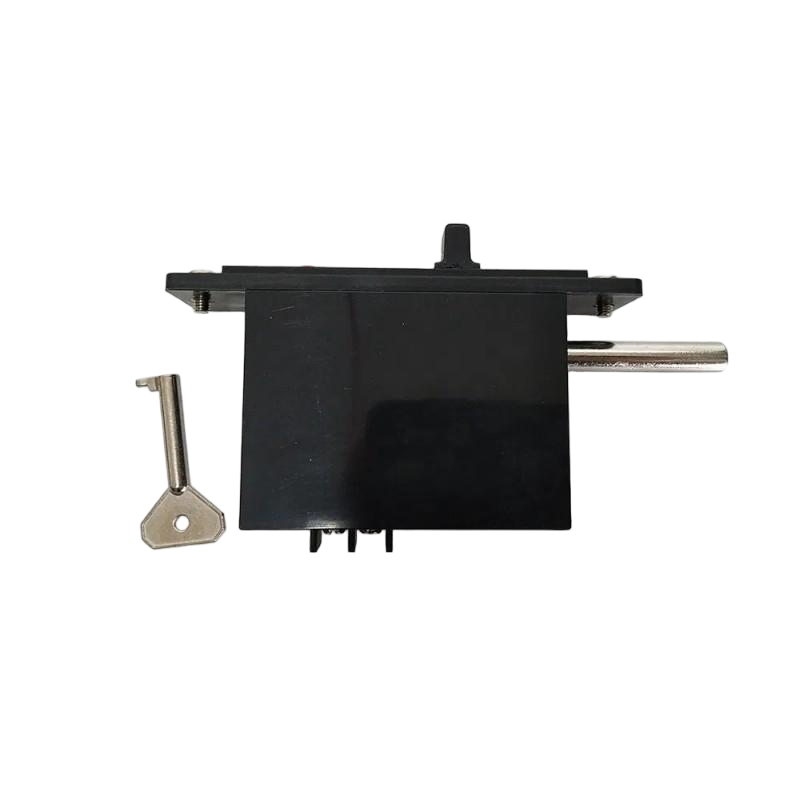

Earthing Switch Electromagnetic lock

DSN-JZ DC24

1、 Structure

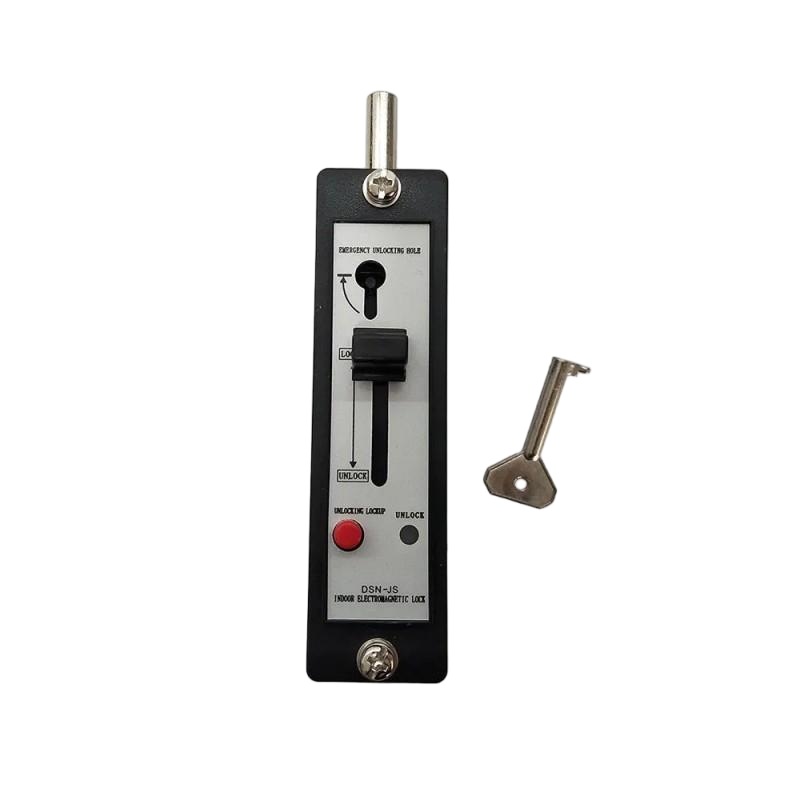

The DSN (W) □ series electromagnetic locks are divided into three categories according to their usage functions: electromagnetic door locks, electromagnetic knife switch locks, and grounding switch electromagnetic locks.

All electromagnetic locks are composed of mechanical and electrical components. The mechanical part includes the lock body, cover plate, lock bolt, unlocking key, etc. The electrical part includes indicator lights, locking electromagnets, travel switches, wiring sockets, etc.

Electromagnetic door locks and electromagnetic knife switch locks can be programmed to interlock with the JSN (W) 1A mechanical program lock produced by our company.

The lock can be equipped with an auxiliary switch to reflect the position of the lock bolt.

Reverse phase electromagnetic locks can be made to meet the requirements of electrical locking and no electrical overhead (opposite to conventional electromagnetic locks).

2、 Normal working conditions

1. Surrounding air temperature: upper limit:+40 ℃, lower limit: -10 ℃ in general areas, -25 ℃ in high-altitude areas.

2. Altitude: The installation area has an altitude of no more than 1000m

3. Environmental humidity: The daily average relative humidity of the air should not exceed 95%; The monthly average is not greater than 90%.

4. Environmental conditions: no obvious pollution, no flammable, explosive, chemical corrosion, salt spray, and no places with frequent severe vibrations

3、 Installation method

Remove the M5 nuts, flat washers, and spring washers from both ends of the lock;

Insert the nut into the installation hole from inside the cabinet door and adjust it;
