JXF control box is suitable for three-phase three-wire,three-phase four-wire, three-phase five-wire systems with 50Hz, 500Vand below,and load current not greater than 250A. It controls the power distribution system, leakage protection, and motor overload, short circuit, and lack of phase protection and various controls. The box is reasonable in design, small in size, beautiful in appearance, safe and reliable in use, and is widely used in metallurgy, petrochemical,medical and health, aviation, residential quarters, shopping malls, schools, and urban reconstruction.

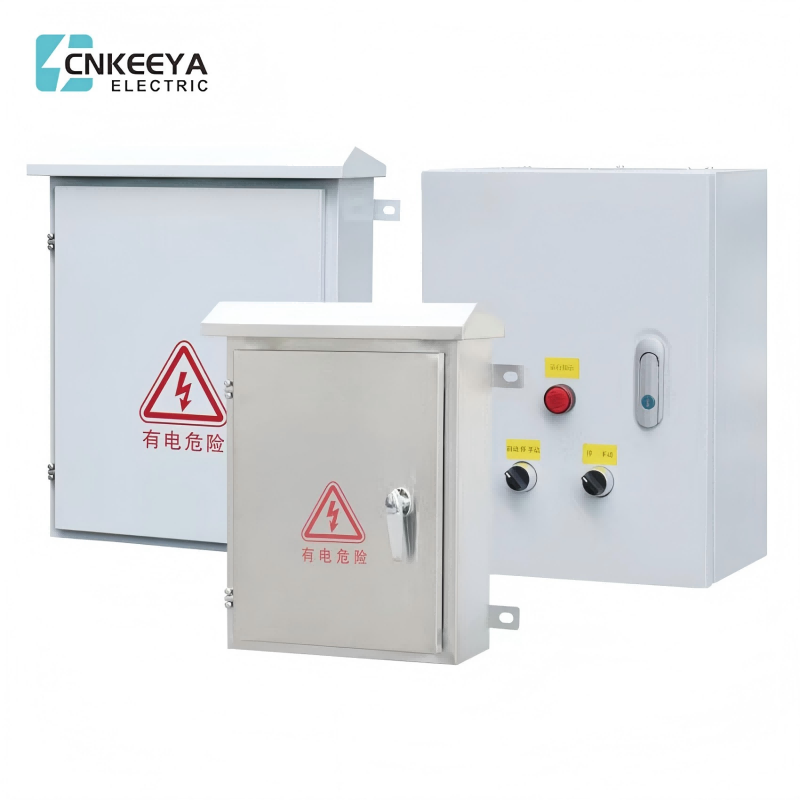

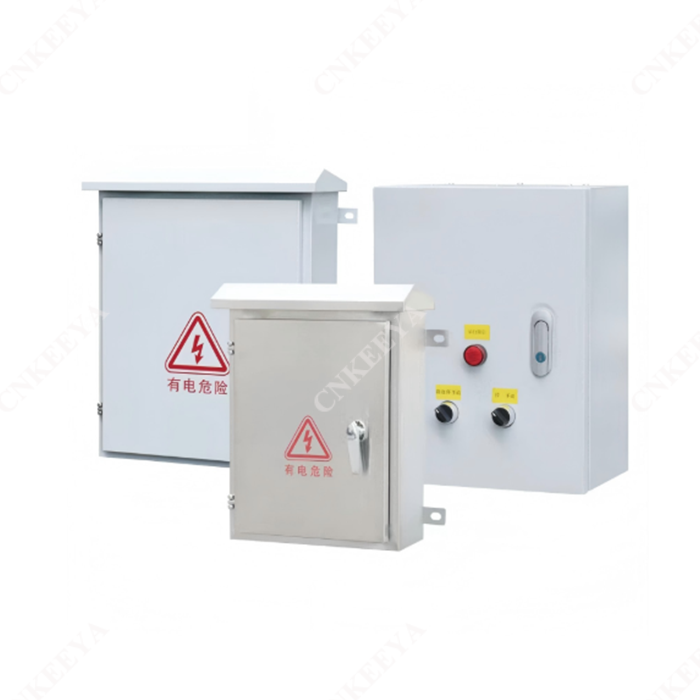

JXF Control box series
● The altitude does not exceed 2000m;
● The ambient air temperature does not exceed +40T, and is not lower than -25℃;
● The monthly average relative humidity of the air at +20℃ is not more than 40%;
● The place should be without severe vibration and impact;
● The place should be without explosion hazard,and without gas and conductive dust in the medium that can corrode metals and destroy insulation.
● This product complies with IEC 60439-1:2009 Low-voltage switchgear and controlgear assemblies -Part 1:Type-tested and partially type-tested assemblies
● This product complies with GB 7251.1-2016 Low-voltage switchgear and controlgear assemblies -Part 1:Type-tested and partially type-tested assemblies.
● Multi-series, multi-structure,welding type, split type, assembly type; outdoor type,indoor type;
● A variety of double door structures,safe and reliable to use;
● Multiple protection levels:IP20,IP40,IP43,IP54,IP65; they can meet the needs of different places;
JXF Control box series
JXF (surface mounted)
JXF (Concealed installation)
JFF
JXF Control box series
Table 1
|
Size |
Height H |
Width W |
Depth D |
Thickness of Iron sheet |
structure features |
|
2520/14 |
250 |
200 |
140 |
1.2 1.5 |
There are two types of JXF exposed installation and concealed installation. JFF has two types doors: metal doors and see-through window doors. The door panels are affixed with sealing rubber strips to prevent rainwater from entering. The box body is equipped with upper and lower wire inlet and outlet holes and amounting base plate. The wire inlet and outlet holes have been installed with a sealing plate at the factory, and the opening angle of the door is greater than 90°. JXF and JFF 1 each have 25 specifications, and JFE 2 has 18 specifications. |
|
3025/14 |
300 |
250 |
140 |
||
|
3025/18 |
300 |
250 |
180 |
||
|
3030/14 |
300 |
300 |
140 |
||
|
3030/18 |
300 |
300 |
180 |
||
|
4030/14 |
400 |
300 |
140 |
||
|
4030/20 |
400 |
300 |
200 |
||
|
5040/14 |
500 |
400 |
140 |
||
|
5040/20 |
500 |
400 |
200 |
||
|
5040/23 |
500 |
400 |
230 |
||
|
6040/14 |
600 |
400 |
140 |
||
|
6040/20 |
600 |
400 |
200 |
||
|
6040/23 |
600 |
400 |
230 |
||
|
6050/14 |
600 |
500 |
140 |
||
|
6050/20 |
600 |
500 |
200 |
||
|
6050/23 |
600 |
500 |
230 |
||
|
7050/16 |
700 |
500 |
160 |
||
|
7050/20 |
700 |
500 |
200 |
||
|
7050/23 |
700 |
500 |
230 |
||
|
8060/20 |
800 |
600 |
200 |
||
|
8060/23 |
800 |
600 |
230 |
||
|
8060/25 |
800 |
600 |
250 |
||
|
100080/20 |
1000 |
800 |
200 |
||
|
10080/25 |
1000 |
800 |
250 |
||
|
10080/30 |
1000 |
800 |
300 |
Note: The size of the cabinet can be determined according to the requirements of the drawings provided by the customer.
Please specify when ordering
● Model;
● Installation method;
● Structural type and dimensions;
● System diagram and control principle diagram;
● Consult and resolve as you have special requirements.
