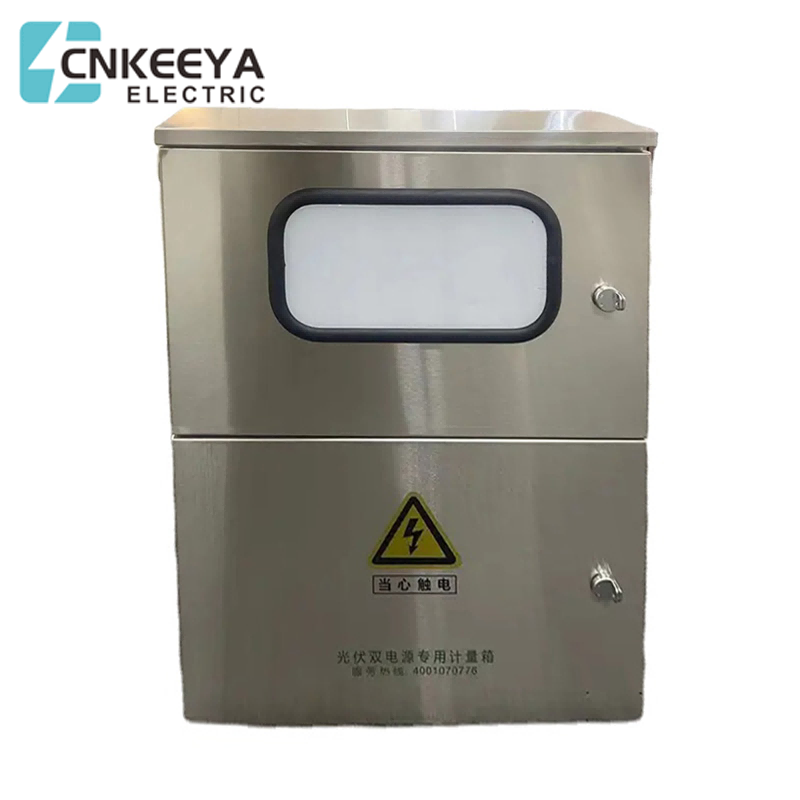

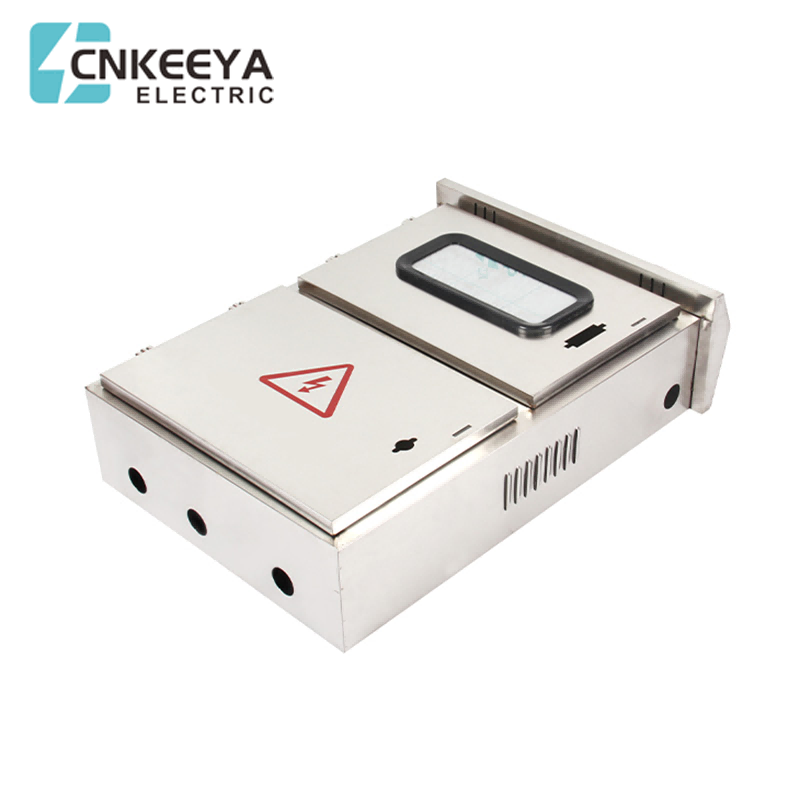

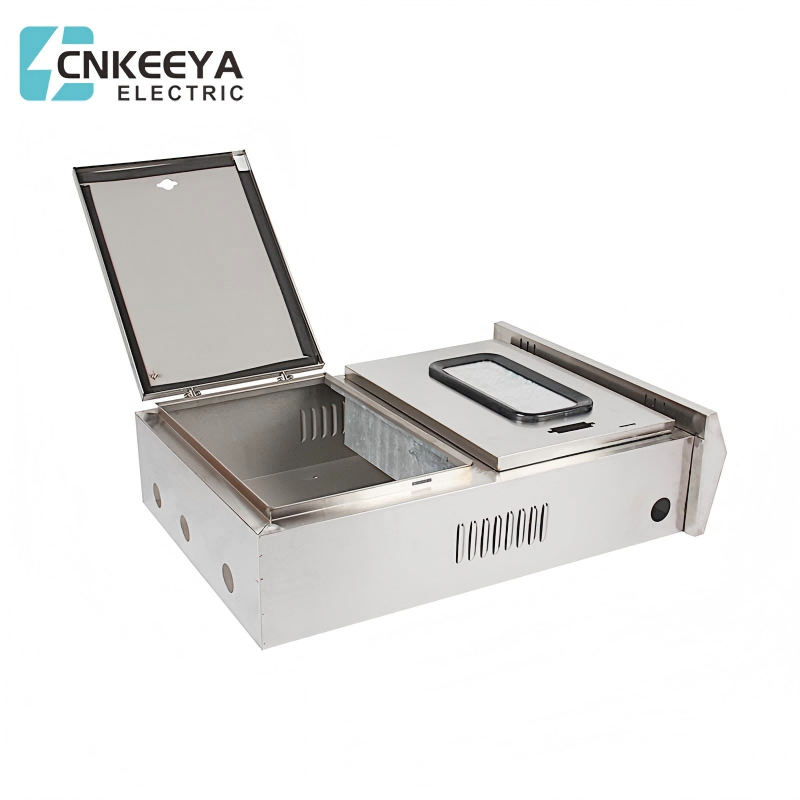

Keeya, a distinguished supplier based in China, specializes in providing top-of-the-line Wall Mounted Waterproof Electric Sheet Metal Boxes. These meticulously crafted products are designed to meet the highest standards of quality and functionality. Keeya's expertise lies in delivering robust solutions that ensure electrical components remain safeguarded from the elements. With a commitment to excellence, Keeya stands as a trusted partner for businesses seeking dependable electrical enclosure solutions.
Keeya, a reputable supplier based in China, specializes in providing high-quality Wall Mounted Waterproof Electric Sheet Metal Boxes. These meticulously crafted enclosures are designed for both indoor and outdoor installations, offering convenience and versatility. With a focus on durability and functionality, Keeya ensures that their products meet the stringent requirements for waterproofing. These electric sheet metal boxes are built to safeguard electrical components effectively. As a trusted supplier, Keeya stands out for delivering reliable solutions for various applications, making them an excellent choice for businesses seeking top-notch electrical enclosures.
1. Designed for wall-mounted installation, compact size, ensuring easy setup for both indoor and outdoor environments.
2. Equipped with clear and precise breaking instructions, capable of handling fault currents. It includes features like loss of voltage trip, under-voltage lockout, and pressure check closing function.
3. Includes a designated space for meter placement, supporting 485 meter reading method (meter provided by the power measurement department).
|
Product name: |
custom wall mounted waterproof electric sheet metal box |
|
Size: |
Customized. We need your drawings in CAD, 3D or PDF. Or you send us your sample, we draw for you |
|
Fabrication processes: |
Getting your order - Caculating material QTY needed & open tooling - Material stock - Fabrication dawings - Material laying off - Stamping - fix the burrs - surface treatment - quality inspection - packing |
|
Surface treatment: |
Polishing, Zinc plating, Powder coating, Chrome plating, Nickel plating |
|
Color: |
Customized |
|
Application: |
Industry, Electrical industry, Mining industry, mechanical, metals, components for furniture, auto, machines etc |
The metal enclosures can be made of stainless steel, carbon steel. aluminum, galvanized steel. etc.
|
|
Model |
GL-PVAC-220 |
GL-PVAC-380 |
|
Performance Parameters |
|
AC 220 |
AC 380 |
|
Stable power |
3-5KW |
5-30KW |
|
|
Rated frequency |
50HZ |
50HZ |
|
|
Network points clearly segmented |
* |
* |
|
|
Circuit breaker |
* |
* |
|
|
Surge protect device |
* |
* |
|
|
Automatic closing |
* |
* |
|
|
Meter position(reserved meter table) |
* |
* |
|
|
The collector position (RS485) |
* |
* |
|
|
Security proiection |
Over current protection |
* |
* |
|
Over/under voltage protection |
* |
* |
|
|
Over/under frequency protection |
* |
* |
|
|
Loss of pressure lockout |
* |
* |
|
|
Leakage Protection |
* |
* |
|
|
Anti-current flow |
* |
* |
|
|
Anti-island protection |
* |
* |
|
|
Grounding /lighting protection |
* |
* |
|
|
Environment |
Altitude |
Less than 2000M |
Less than 2000M |
|
Environment tempreture |
-20℃-60℃ |
-20℃-60℃ |
|
|
Environment humidity |
5%-95%HR |
5%-95%HR |
|
|
Dimension |
Dimension |
400*500*180mm |
400*500*180mm |
|
Material |
Stainless steel |
Stainless steel |
|
|
Structure |
Split two door |
Spirt two door |
|
|
Installation |
wall-mounted |
wall-mounted |
|
|
Protection level |
IP65IP65 |
wall-mounted |
