For over two decades in this field, I’ve seen it all. The most common and costly mistakes in electrical systems often boil down to one underestimated component: the protection strategy. Owners and operators of industrial facilities frequently ask me, “What is the simplest yet most critical safeguard for my expensive transformers and capacitors?” My answer is always the same: a properly selected High Voltage Fuse.
But how does it actually work? Let’s break it down without the overwhelming jargon.

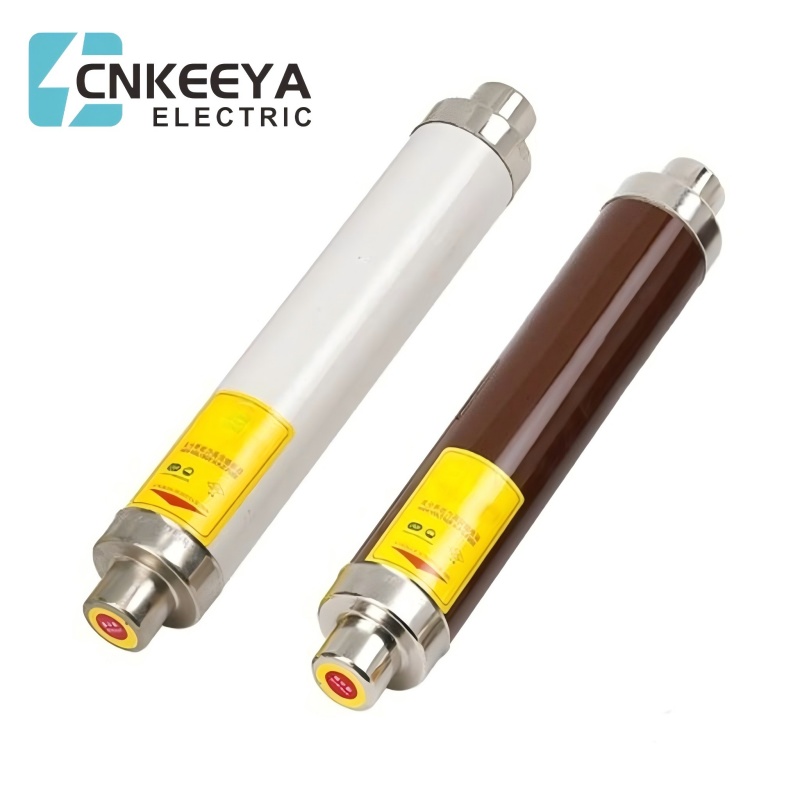

Think of a High Voltage Fuse as a dedicated, single-use guardian. Its sole purpose is to sacrifice itself to save your far more valuable equipment. Transformers and capacitors are prone to specific failure modes, like internal short-circuits or massive current surges from external faults. When such an event occurs, the electrical current can skyrocket to dangerous levels in milliseconds. This is where our guardian springs into action. The fuse’s precisely calibrated element melts under the excessive current, intentionally creating an open circuit. This action instantly isolates the faulty transformer or capacitor from the rest of the power system, preventing a catastrophic failure that could lead to fires, equipment explosions, and prolonged downtime.
This is a fantastic question. While circuit breakers are excellent for overload protection and can be reset, they simply aren’t fast enough to handle the extreme speed of a high-energy fault. The destructive energy (known as I²t) let-through by a slow-acting breaker can be enough to destroy a transformer winding or rupture a capacitor case before the breaker even finishes its first cycle. A current-limiting High Voltage Fuse operates in a fraction of the time, typically within the first half-cycle of the fault, drastically limiting this destructive energy and containing the damage to the fuse itself. This speed is non-negotiable for protection.
Selecting a fuse isn’t about just matching voltage and current ratings. It’s about understanding the character of the equipment you’re protecting. A transformer’s inrush current is very different from a capacitor’s switch-on surge. At CNKEEYA, we’ve spent years refining our selection guidelines to ensure perfect harmony between the fuse and its protected asset.
Here are the key parameters we focus on for our clients:
System Voltage: The fuse’s voltage rating must be equal to or greater than the circuit’s maximum voltage.
Continuous Current Rating: This must be chosen to comfortably exceed the normal full-load current of the transformer or the maximum current of the capacitor bank, including harmonic considerations.
Interrupting Rating: This is the maximum fault current the fuse can safely interrupt. It must be higher than the available fault current at the point of installation.
Speed Characteristics: We determine if a time-delay (for transformer inrush) or a fast-acting (for capacitors) characteristic is required.
I²t (Let-Through Energy): A critical measure of the total energy the fuse allows to pass before interrupting; a lower I²t means better protection.
To illustrate the precision required, here is a simplified selection table for a common 24kV system:
| Protected Asset | Asset Rating | Key Consideration | Recommended CNKEEYA High Voltage Fuse Series | Primary Benefit |
|---|---|---|---|---|
| Distribution Transformer | 1 MVA | Withstand magnetizing inrush current | Time-Delay (K-Type) | Prevents nuisance blowing during startup |
| Capacitor Bank | 600 kVAR | Handle frequent switch-on surges | Fast-Acting (R-Type) | Provides rapid protection against internal shorts |
| Potential Transformer | 4.16 kV | Extreme current limitation | Current-Limiting (X-Type) | Very low I²t for sensitive voltage equipment |
Absolutely. This is the most compelling argument for not treating fuses as a commodity. While a cheaper, generic High Voltage Fuse might seem like a cost-saving win upfront, it can be a devastatingly expensive gamble. An incorrectly specified fuse can fail to operate when needed, leading to the total loss of a $50,000 transformer and tens of thousands more in unplanned outage costs. Alternatively, a poor-quality fuse can nuisance trip during normal inrush, creating unnecessary and costly downtime.
Investing in a precision-engineered High Voltage Fuse from a trusted brand like CNKEEYA is a direct investment in system reliability. You are paying for peace of mind—knowing that your protection strategy is robust, tested, and designed to fail safely so that nothing else does. Our fuses are built to international standards, ensuring they perform exactly as predicted every single time.
Your electrical assets are the backbone of your operation. Protecting them shouldn’t be a question of chance. It should be a matter of precise engineering. Contact us today to speak with one of our protection specialists. Let us help you analyze your system and specify the exact High Voltage Fuse you need to sleep soundly, knowing your investments are safe.
