Indoor Ac High Voltage Grounding Switch

KEEYA, a leading manufacturer in the electrical equipment industry, specializes in producing high quality Indoor AC High Voltage Grounding Switches. With a state-of-the-art factory and a commitment to excellence, KEEYA has established itself as a trusted supplier. We collaborate with reputable suppliers to ensure top-notch components, guaranteeing the exceptional performance and reliability of their grounding switches.

Send Inquiry

Product Description

KEEYA, a prominent figure in the electrical equipment manufacturing sector, excels in the production of high quality Indoor AC High Voltage Grounding Switches. Operating from a cutting-edge manufacturing facility and driven by a dedication to excellence, KEEYA has solidified its position as a reliable supplier. Through strategic partnerships with esteemed suppliers, KEEYA ensures the incorporation of high-quality components, assuring the exceptional performance and reliability of their grounding switches.

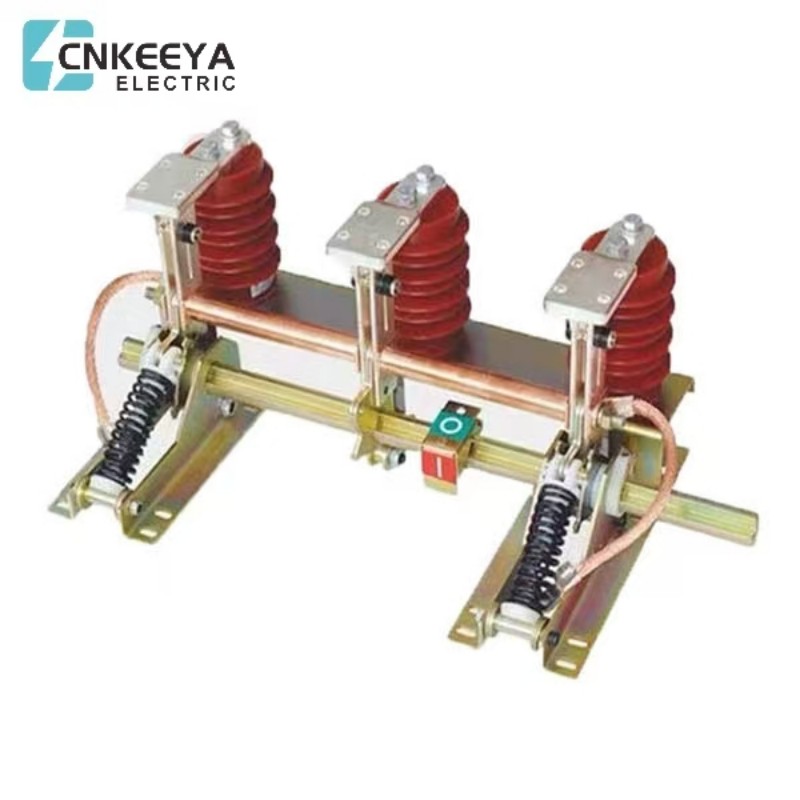

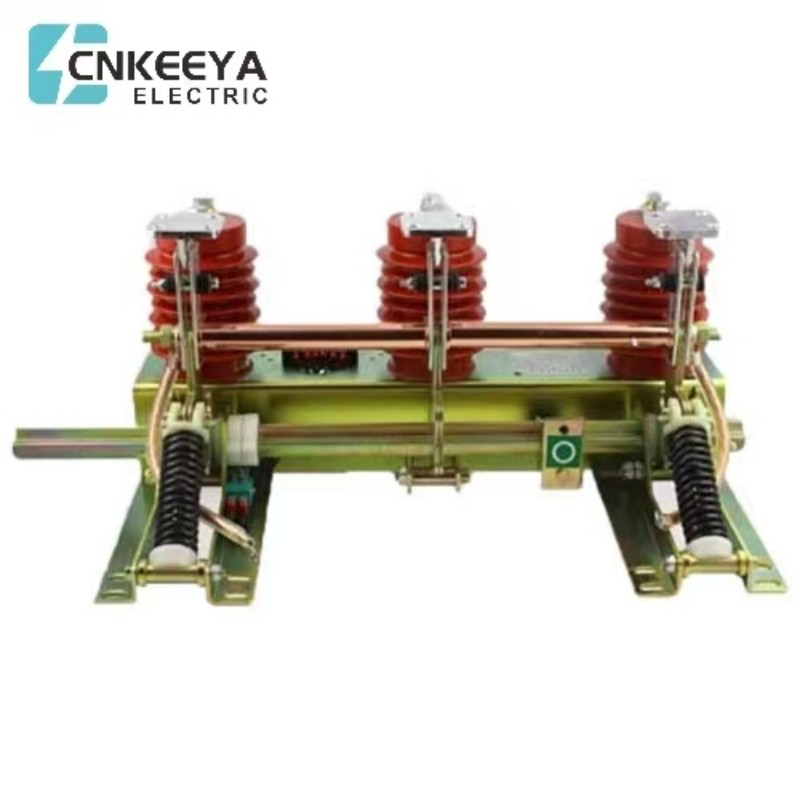

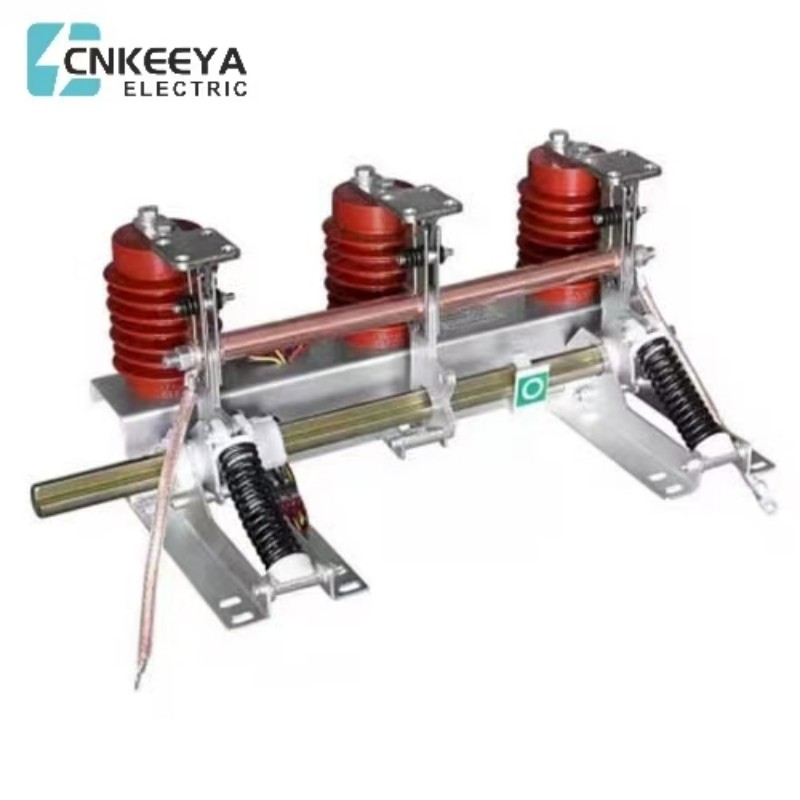

The KEEYA’s JN15-12/31.5 series Indoor Ac High Voltage Grounding Switch is a newly engineered and enhanced product developed by our company, based on the ES1 model. It is designed to be compatible with electrical power systems ranging from 3-12KV, operating on a three-phase, AC 50(60)Hz frequency. This switch is designed to seamlessly integrate with various types of high-voltage switchgear, providing essential earthing protection. It is manufactured in strict adherence to both GB1985-2004 and IEC129 standards.


Operating Conditions:

1. Ambient temperature range: -10°C to +40°C

2. Suitable for altitudes up to 1000m (sensor height: 140mm)

3. Daily average relative humidity not exceeding 95%

4. Monthly average relative humidity not surpassing 90%

5. Designed to withstand earthquake intensities of up to 8 degrees

6. Suitable for environments with pollution degree II.


Key Structural Characteristics:

1. High-strength transducer: Employing top-grade materials with excellent insulation enhancements.

2. Energy-storing spring: Robust and resistant to deformation, ensuring a one-time, precision molding.

3. Copper round rod: Utilizing premium-grade copper for superior conductivity.

4. Well-defined structure: Offers flexibility for customization and bespoke designs.


The main technical parameters

name

unit

Numerical value

Rated voltage

KV

12

Rated short-time withstand current

KV

31.5

Rated short circuit duration

S

4

Rated short circuit closing current

KA

80

Rated peak withstand current

KA

80

Center distance between poles

mm

150,210,275

Rated insulation level

1min power frequency withstand voltage

KV

Ground, phase

42/48

75/85
